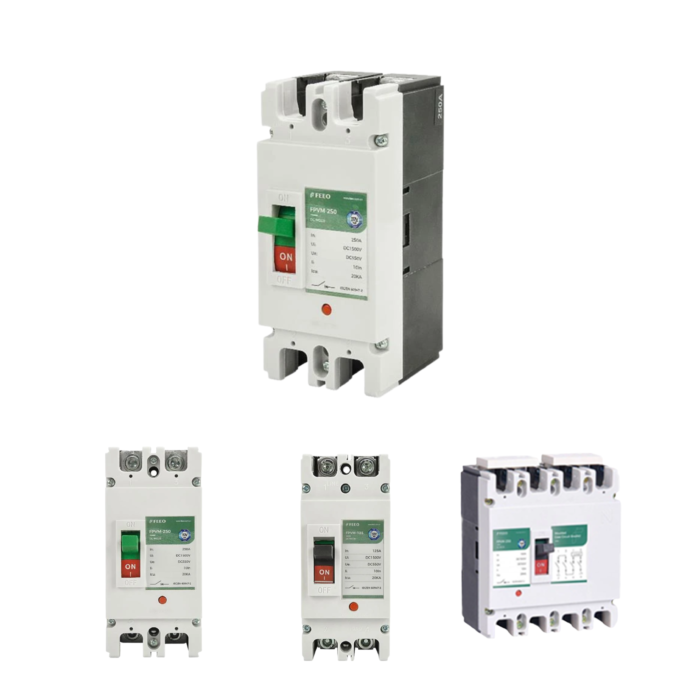

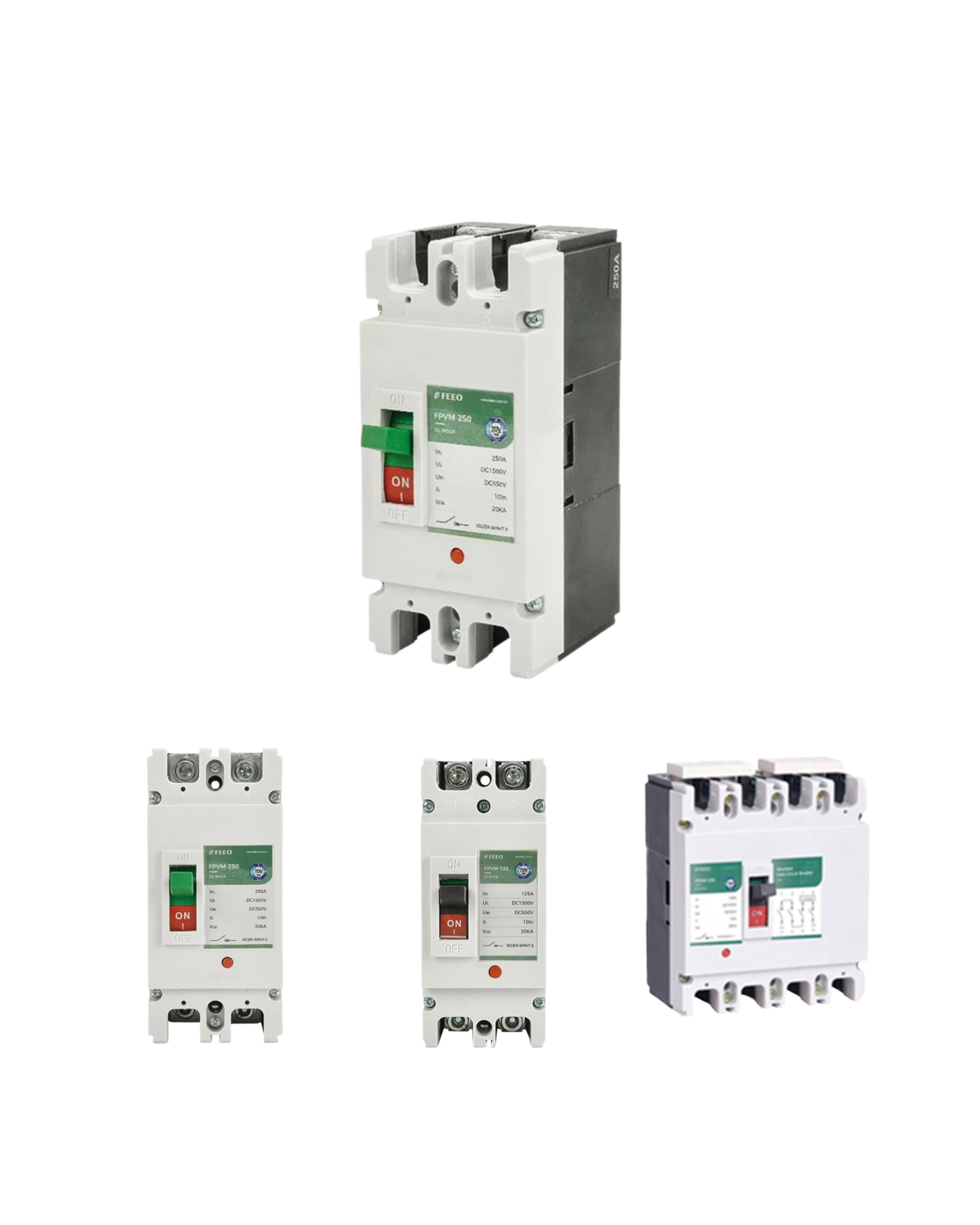

MCCB DC BREAKERS

MCCB DC BREAKERS

A DC MCCB (Molded Case Circuit Breaker) is used to protect high-current DC circuits in solar PV systems, battery banks, inverters, and DC distribution boards. It safely disconnects the circuit during overloads or short circuits, preventing damage to equipment and reducing fire risk. Designed specifically for DC applications, it handles higher arc energy than AC breakers and is suitable for large solar and energy storage systems.

Technical Details

• Breaker Type: DC MCCB (Molded Case Circuit Breaker)

• Application: Solar PV systems, battery banks, DC distribution, inverter protection

• Voltage Rating: Typically 500V DC / 750V DC / 1000V DC (model dependent)

• Current Rating: Commonly 63A – 400A (varies by model)

• Number of Poles: 2P / 3P / 4P options

• Breaking Capacity: High DC breaking capacity for safe arc interruption

• Trip Protection: Thermal (overload) and magnetic (short-circuit) protection

• Mounting Type: Panel-mounted (not DIN rail)

• Operation: Manual ON/OFF with clear trip indication

• Insulation Material: High-strength molded case, heat and flame resistant

• Standards: Designed for DC systems and solar applications

• Typical Use: Main DC isolator, battery protection, inverter DC input/output protection
